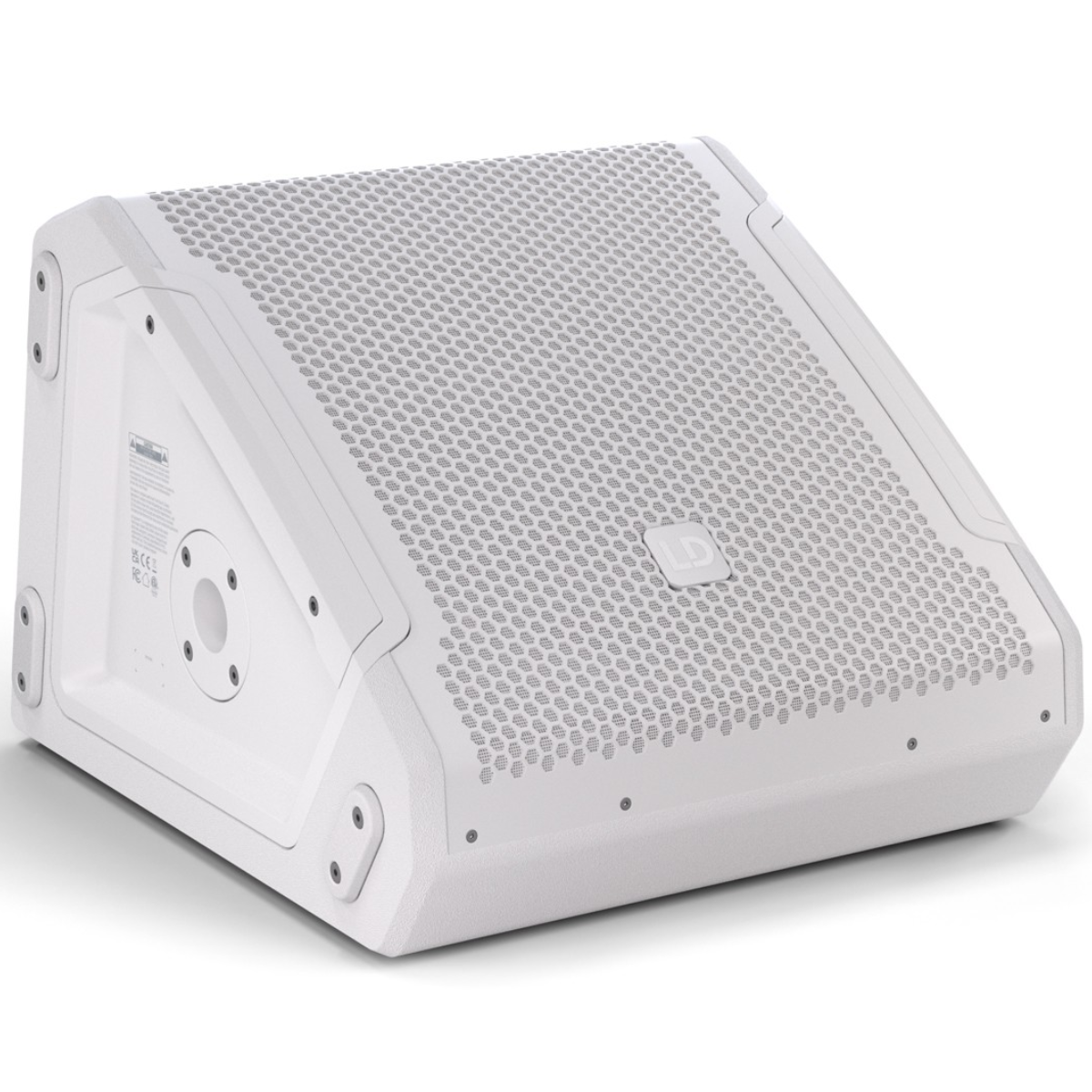

LD Systems LDMON10AG3W
(LD Systems MON 10 A G3 W)
Powered Stage Monitor
LD Systems MON 10 A G3 W is a compact active stage monitor designed for high-performance monitoring in live sound, rehearsal, installation, and portable PA applications. With a coaxial 10-inch speaker system, 1200W peak Class D amplification, and onboard DSP control, it delivers clear, powerful sound in a durable white cabinet that works well on stage or as a compact FOH speaker.
LD Systems MON 10 A G3 W Competitive Differences
- Coaxial 2-way design with integrated 50° x 90° CD horn for true point-source performance at short listening distances
- DynX DSP Gen.2 processing with 3-band EQ, notch filter, presets, delay, and limiter protection
- Compact white enclosure with durable Polyurea coating, heavy-duty aluminum front grille, and dual handles
- PowerCON compatible mains connection and signal loop-through for clean multi-monitor setups
LD Systems MON 10 A G3 W Description
The LD Systems MON 10 A G3 W is part of the MON G3 Series, a family of powered stage monitors built to bring high-end monitoring technologies into a more accessible and compact format. Its 2-way coaxial speaker system combines a 10-inch woofer with a 1.75-inch voice coil and a high-frequency driver with a 1.75-inch titanium diaphragm voice coil, helping deliver consistent sound from a true point-source design.
With 300W RMS and 1200W peak Class D amplification, the MON 10 A G3 W reaches up to 126dB max SPL while remaining compact enough for discreet stage placement. The 50° x 90° dispersion pattern is optimized for monitor use, while the 35 mm speaker stand flange allows the cabinet to be used for FOH applications when needed.
Built-in DynX DSP Gen.2 processing helps maintain clean sound at high output levels, while the onboard 3-band EQ, notch filter, application presets, and delay function give performers and engineers practical control directly from the monitor. These tools make it suitable for vocal monitoring, instrument monitoring, small live setups, rehearsals, mobile production, and distributed sound reinforcement.
The cabinet is built from birch multiplex and MDF with a durable Polyurea coating, heavy-duty aluminum grille, and two integrated handles for transport. Both the audio signal and mains power can be looped through, making the LD Systems MON 10 A G3 W a practical option for clean, professional multi-monitor cabling.
MON 10 A G3 W Features
- Compact active high-performance stage monitor in white
- 300W RMS / 1200W peak Class D amplification
- 126dB max SPL peak output
- 10-inch woofer with 2.5-inch voice coil
- Coaxial 2-way speaker system for true point-source performance
- High-frequency driver with 1.75-inch titanium-diaphragm voice coil
- 50° x 90° CD horn dispersion optimized for monitor use
- DynX DSP Gen.2 processing for controlled sound at high volume
- 3-band EQ, notch filter, presets, and delay function
- PowerCON compatible power connection with loop-through capability
- Signal loop-through for multi-monitor setups
- 35 mm speaker stand flange for FOH applications
- Durable Polyurea coating and heavy-duty aluminum front grille
- Built-in multiband limiter, overheating, overvoltage, and overload protection
MON 10 A G3 W Specifications
- Type: Active powered stage monitor
- Series: MON G3
- Color: White
- Speaker System: 2-way coaxial system
- Power Output: 300W RMS / 1200W Peak
- Amplifier Class: Class D
- Max SPL Peak: 126dB
- Max SPL Average: 118dB
- Frequency Response: 58 Hz - 20 kHz
- Frequency Response -3dB: 72 Hz - 18 kHz
- Frequency Response -10dB: 58 Hz - 20 kHz
- Crossover Frequency: 1700 Hz
- Beam Angle: 50° horizontal x 90° vertical
- Monitor Angle: 33°
- Bass Driver: 10 in (254 mm)
- Bass Driver Voice Coil: 2.5 in
- Bass Driver Magnet: Ferrite
- HF Driver Size: 1 in
- HF Driver Voice Coil: 1.75 in
- HF Driver Magnet: Ferrite
- Number of Inputs: 2
- Line Input Connectors: 6.3 mm TRS jack female
- Number of Outputs: 2
- Line Output Connectors: 3-pole XLR female
- Audio Processing: 3-band EQ, delay line, notch filter, presets
- Protection Features: Multiband limiter, overheating, overvoltage, overload
- Operating Voltage: 100 V AC - 230 V AC / 50 - 60 Hz
- Power Supply Type: External switched-mode power supply
- Rated Power: 150W
- Mains Connector: Indoor power input male and powerCON compatible
- Mains Fuse: T4AL/250 V
- Housing Design: Bass reflex
- Cabinet Material: Birch multiplex and MDF
- Material Thickness: 15 mm
- Front Grille Material: Aluminum
- Handles: 2
- Flange: 36 mm, 0°/5°
- Ambient Temperature: 0 - 40°C
- Maximum Air Humidity: 80% non-condensing
- Dimensions: 14.96 x 12.01 x 16.77 in (380 x 305 x 426 mm)
- Weight: 33.53 lb (15.21 kg)
What's In The Box
- LD Systems MON 10 A G3 W powered stage monitor
- Mains cable
